Truck with a grab bucket

Wanshan 4WD Off-road Grab-type Garbage Truck(Folding Arm Grabber with Vehicle)

Vehicle Model:CL5182ZZD6ABL

Vehicle Size:6700/6850/7000/7150/7300/7450*2350/2420/2470*3600/3650/3700/3800/3900/3980
Cargo Box Size:3500/3600/3800/3900/4050/4100/4200/4300/4500/4700*2200/2300/2300/2350*550/600/700/800



Chassis Model:WS2182GJB
Chassis Configuration:

Wanshan 4*4 chassis, 3800/3950mm wheelbase, single-row/half-row cab, splitter box Hangtooth HCF700, front axle 4.5 tons, rear axle Ward 13 tons (also optional 10 tons and 16 tons of wheel-reduced axle price is negotiable), speed ratio: 6.83, 280 (7+4) straight through the two-layer high-strength beams, the rear main spring (90 * 18 * 10), the rear payload ( 90 * 16 * 8), 10.00R20 steel wire tires (also optional large tread tires price negotiable), original air conditioning, electric windows remote control key, control locks, sunshade, remote control key, the sunshade. 90*16*8), 10.00R20 steel wire tires (also optional large tread tires price negotiable), original air conditioning, electric doors and windows remote key, central locking, sunshade, driving recorders, ABS braking system, self-adjusting arm, brake friction pads alarm device, steering voice device, 220L aluminum tank, remote throttle, etc. and the new regulations.

Wanshan 4WD Chassis Highlights

① front and rear axles are equipped with inter-axle differential locks, easy to get out of the mud

② with high and low speeds, torque, fuel efficiency, climbing ability is stronger.

③ original four-wheel drive applicable to any road conditions, can climb the mountain and can go through the river

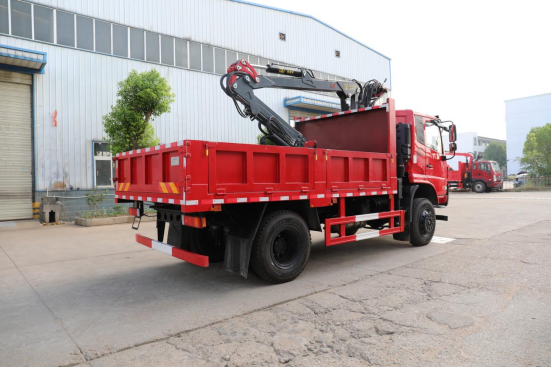

Wanshan 4WD Grab Dump Truck (Grapple Grabber)

Model:MSH5161ZZDG1B

Vehicle size:7050/7100/7200/7300/7400*2350/2450/2500/2550*3600/3700/3750/3800/3900

Cargo box size:4100/4200/4400/4500*2200/2300/2350/2400*550/600/700 /Chassis Model:WS2161GJB



Chassis Configuration:

Wanshan single-row/half-row cab, 3950/3800mm wheelbase, Yuchai 200hp(YCS04200-68), Faster 8-speed gearbox(8JS85E-(), splitter box Hangzhou HCF700, front axle 45T standard front-drive, rear axle Warde 10 tons (also can be equipped with 13-ton and 16-ton axle price is negotiable), speed ratio: 6.83. 280(7+4) through two-layer high-strength beam, front spring(75*14*9), rear main spring(90*18*10), rear pay spring(90*16*8), 9.00R20*6 tires, original air-conditioning, electric windows and doors, remote key, central locking, sunshade, tachograph, ABS brake system, self-adjusting arm, brake friction pads alarm device, steering voice device, 220L Aluminum fuel tank, remote throttle, etc. and the new regulations on the configuration: 6.5 m a arm / 6.5 m two-section arm / 7.5 m a arm / 7.5 m two-section arm / 7.8 two-section arm-type grab arm, optional hard or soft connection can be selected to grab wood grippers, bamboo grippers grab, grab grass rake, shell bucket, clamping bricks to grab, five grippers, scrap steel to grab, glass grippers, but also customize a variety of grippers, but also with suction cups. Cargo box side three bottom five, double top tipper.

Wanshan 4WD Chassis High Point

1. Front and rear axles are equipped with inter-axle differential locks, making it easy to get out of the mud.

2. With high and low speeds, high torque and fuel saving, better hill climbing ability.

3. Original four-wheel drive is suitable for any road conditions, and can go up the mountain and down the river.
